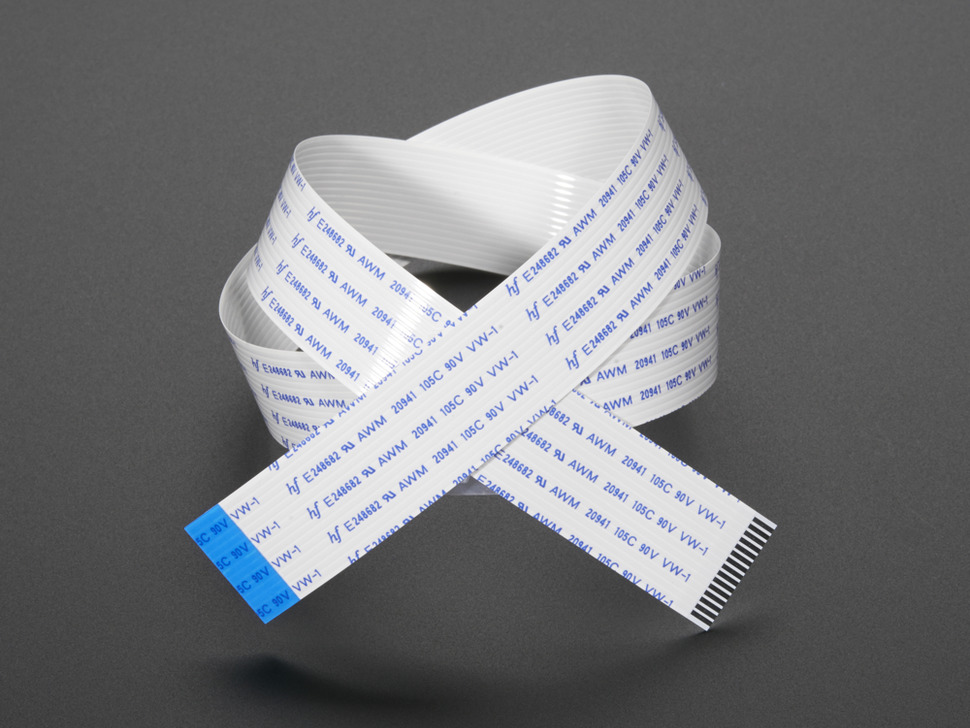

The complete line of 0.50, 1.00 and 1.25mm pitch flat flex cable (FFC) jumpers, available in cable thickness options of 0.12, 0.14, 0.22 and 0.27mm, offers standard lengths, pitches and circuit sizes to solve complex board-to-board interconnection challenges in compact/ hard to reach applications. Darlox-Flex FFC jumpers in ultra-thin, ultra-flexible 0.12mm cable have an extended flex life of 900,000 cycles vs. standard jumper flex life of 6,000 cycles.
Darlox-Flex polyimide jumpers with etched-copper circuitry achieve the tight-tolerances required for reliable connections to fine pitch, 0.30mm microminiature connectors, that standard copper wire FFC jumpers cannot. Off-the-shelf Darlox-Flex FFC and etched polyimide jumpers avoid custom tooling costs and reduce lead-times. In addition,
Darlox can also accommodate custom requirements for jumpers in lengths of over 305mm.Darlox-Flex FFC and etched polyimide jumpers are terminated to Zero Insertion Force (ZIF), non-ZIF or Low Insertion Force (LIF) FFC connectors, available from Darlox. Type A (same-side) and Type D (opposite-side) contact layouts allow for mirrored contacts in top- and bottom-mount applications.
